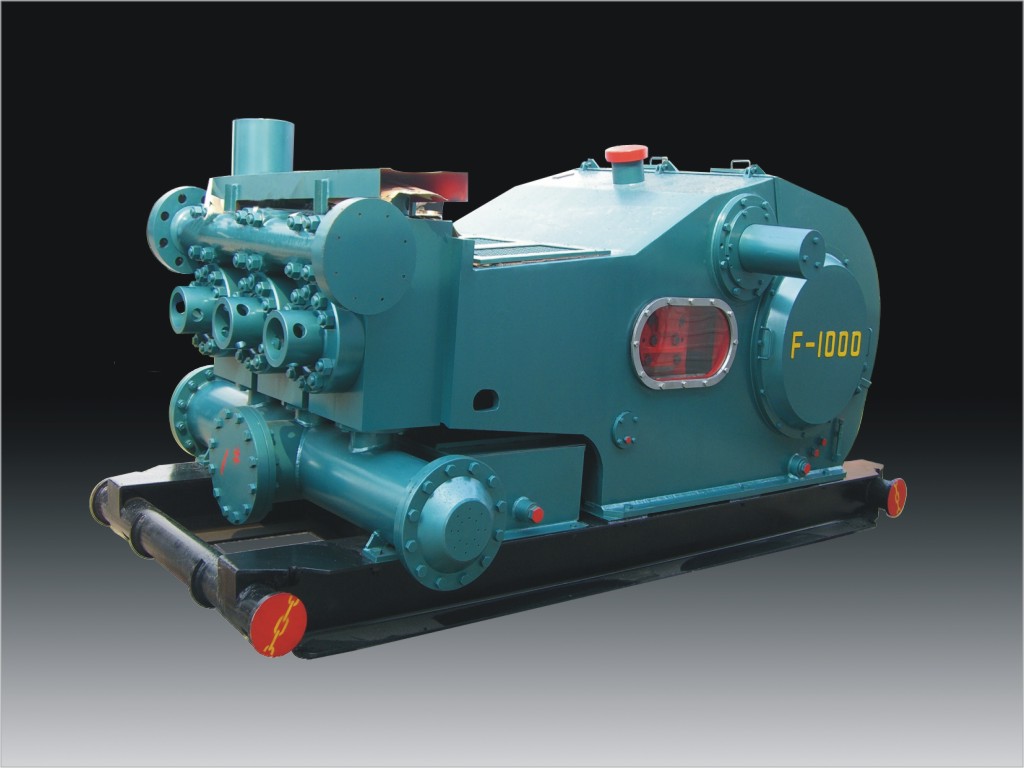

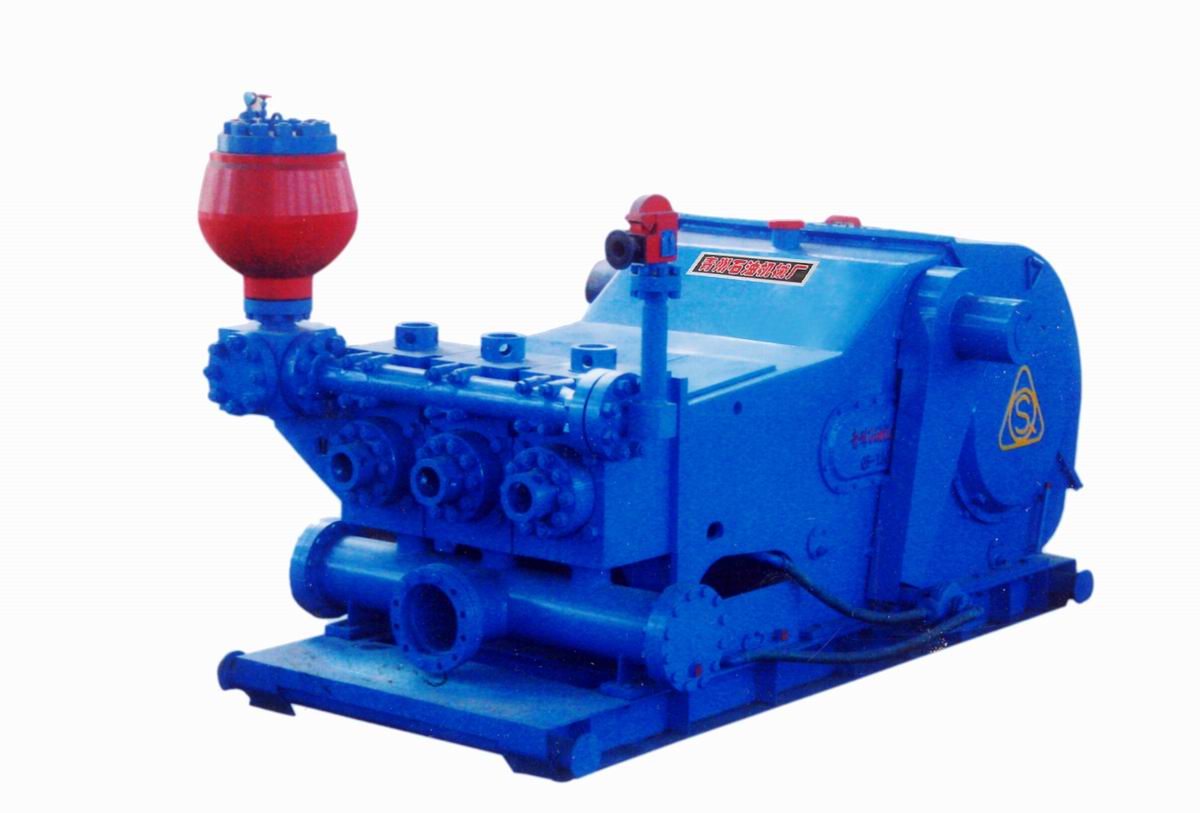

Mud pump

The Triplex Single Acting Mud pump is machined as per the designs provided by LTV Co on Emsco F Series pump with all fluid end parts interchangeable to that being machined by Emsco OEM plants. All of the interchangeable power & fluid end parts for F series mud pumps are machined by Baoji Oilfield Machinery Co., Ltd (BOMCO),Lanzhou LS-National Oilwell Petroleum Engineering Co., Ltd, and Sichuan Petroleum Equipment manufacturing Company.

TYPE	MODEL
	F-500	F-800	F-1000	F-1300	F-1600
Rated input power	370KW(500HP)	590KW(800HP)	735KW(1000HP)	960KW(1300HP)	1180KW(1600HP)
Rated strokes	165SPM	150SPM	140SPM	120SPM	120SPM
Stroke length	191mm(7.5");	229mm(9")	254mm(10")	305mm(12")	305(12")
Gear ratio	4.286:1	4.185:1	4.207:1	4.206:1	4.206:1
Valve chamber size	API 5#	API 6#	API 6#	API 7#	API 7#
Liner ID	170mm	6 1/2"	6 3/4"	7"	7"
Rated WP	9.3Mpa	14.4Mpa	16.4Mpa	19.2Mpa	19.2Mpa
Suction connection size	203mm(8")	254mm(10")	305mm(12")	305mm(12")	305mm(12")
Discharge connection size	4" Flange 35pa;	5 1/8" Flange 35pa	5 1/8" Flange 35pa	5 1/8" Flange 35pa	5 1/8" Flange 35pa
Pinion shaft diameter	139.7mm (5 1/2"	177.8mm(7")	196.85mm(7 3/4")	215.9mm(8 1/2")	215.9mm(8 1/2")
Keys	31.75×31.75mm （1 1/4"×1 1/4")	44.45×44.45mm （1 3/4"×1 3/4")	50.8×50.8mm （2"×2")	50.8×50.8mm （2"×2")	50.8×50.8mm （2"×2")
Outline	3685×2709×1543mm (145"×106 5/8"×60 3/4")	3963×3024×1694mm (156"×119"×60 3/4")	4269×3167×1818mm (168"×124 5/8"×70 9/16")	4615×3024×2004mm (181 11/16"×128 3/8"×78 7/8")	4615×3024×2004mm( 181 11/16"×128 3/8"×78 7/8")
Weight	9770kg(21539 LB)	14500kg(31937LB)	18790kg(41420LB)	25850kg(56959LB)	26100kg(57540LB)

We also supply Ellis Williams Style Pump and spares with good price and high quality !

W-440 (E-440） W-446 (E-446)

W-440 Parameter		Rated strokes (SPM)	320	270	220	170	120	70
		Rated input power （HP）	440	380	320	260	200	200
Liner ID(in)	Rated WP(psi)	gallon/r	gallon/min
4 1/2	1710	1.239	397	335	273	211	149	87
4 1/4	1917	1.105	354	299	243	188	133	77
4	2169	0.979	313	264	215	167	118	69

•
•
•
