stabilizer

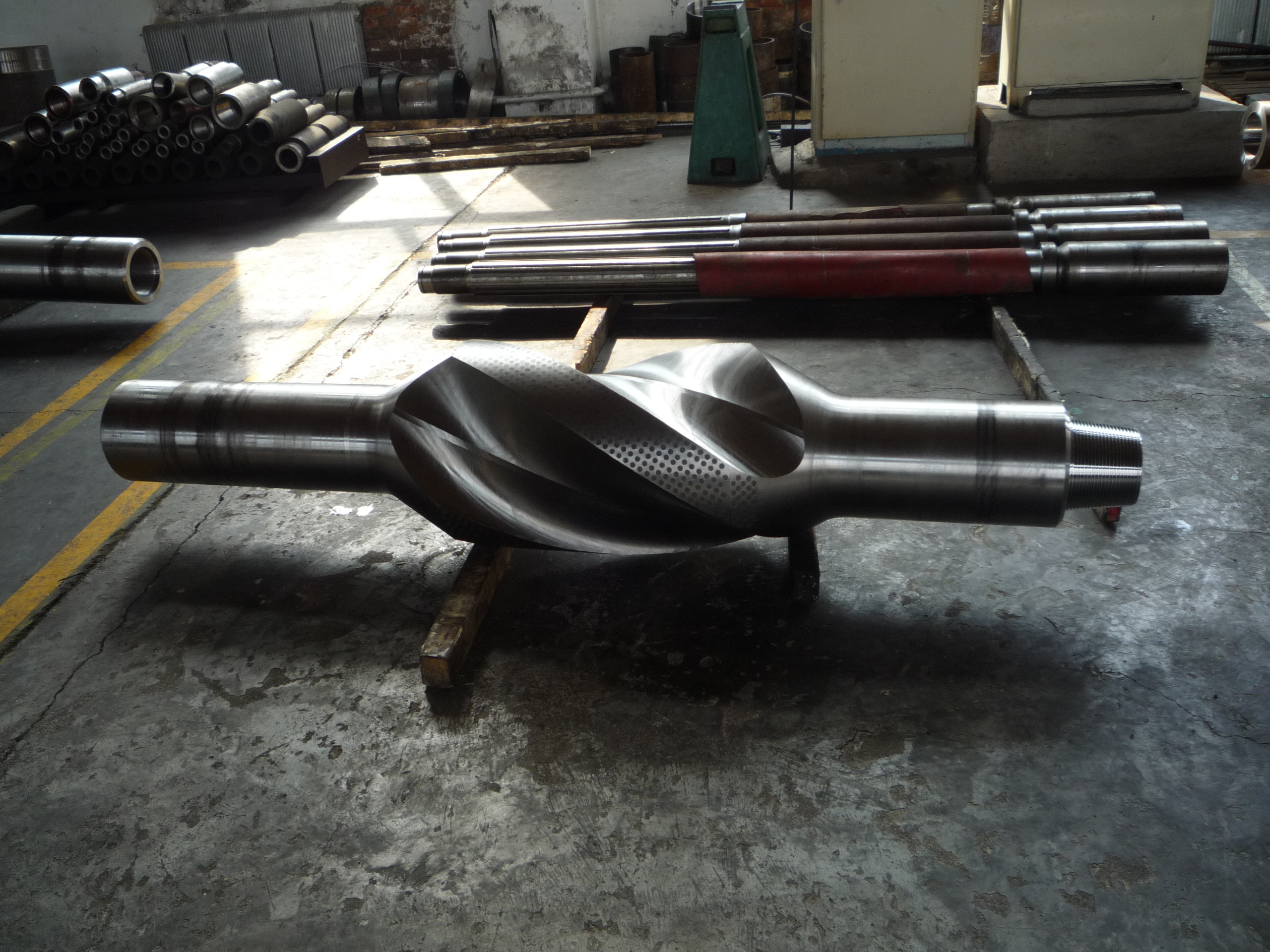

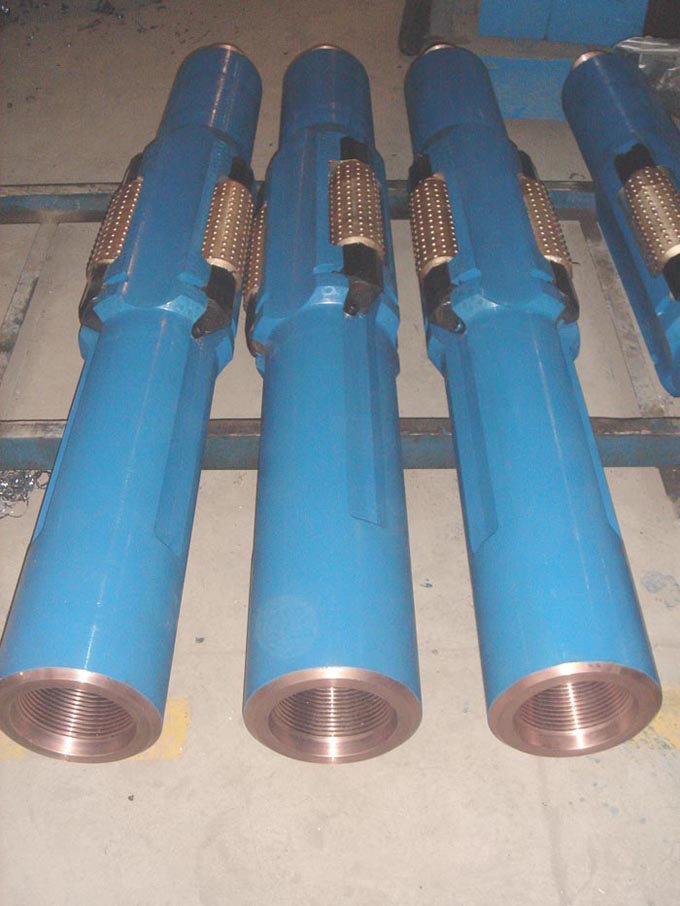

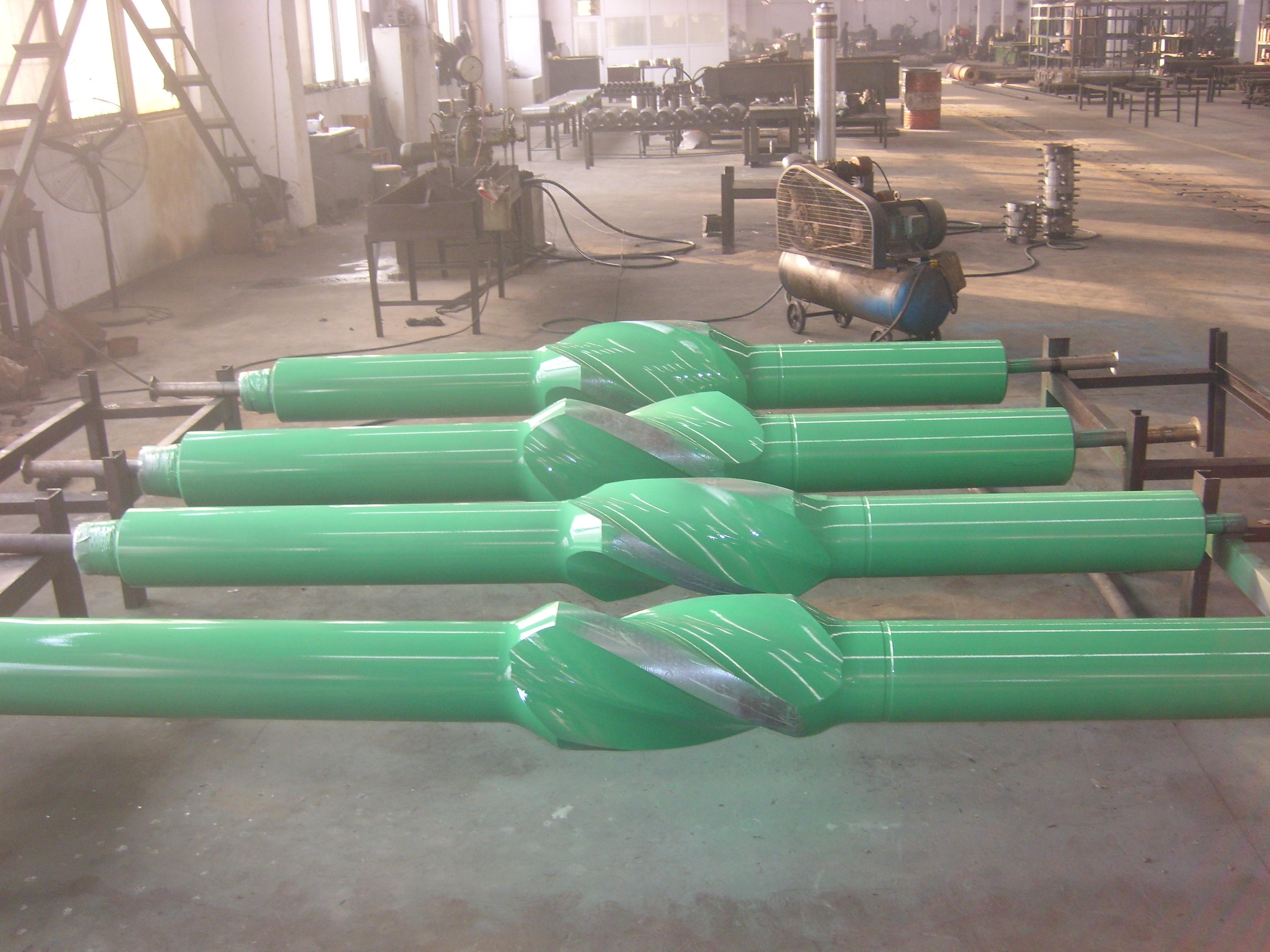

we supply integral spiral blade stabilizer, integral straight-rib stabilizer, sleeve replaceable type stabilizer, float valve stabilizer, drilling reamer, unbalanced spiral blade stabilizer and variable-diameter stabilizer, all above products comply with API Spec.7. Integral 3-Spiral Blade Stabilizer, Integral 4-Spiral Blade Stabilizer (string type ,near bit type ). The working hard facing surface (also called as wall contact )materials available separately are (1) carbide insert,(2) Inserted diamond compound, (3) Low temperature brazing tungsten carbide slug,(4) Surface bead welding abrasive welding rod, etc.
Material: AISI 4145H or AISI 4145H Modified
Type: Spiral Interchangeable sleeve reamer
Length: 50"~90" Hole size range: 5 3/4"~36"
Connection Thread: IF FH REG
Harding facing:HF1000 HF2000 HF3000(TCI) HF4000
Roller type:
Type T: Milled, machined with hard faced sharp teeth, for soft formations.
Type F: Milled, machined with hard faced flat teeth, for medium hard formations.
Type B: Equipped with pressed-in tungsten carbide buttons, for hard formations

•
•
•
•
•
